Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15

Reference video of QT6-15 solid block making machine

This equipment enables the production of any block shape required, using only common concrete. The QT6-15 automatic solid block making machine offers unmatched versatility for wholesale buyers. It transforms standard concrete into diverse forms, including hollow blocks, pavers, curbstones, and interlocking designs.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	6	1080	8640-11520
Solid Block	24011553	32	7680	46080-61440
Holland Block	20010060	21	3780	30420
Zigzag Block	225112.560	20	3600	28800

Product Detail

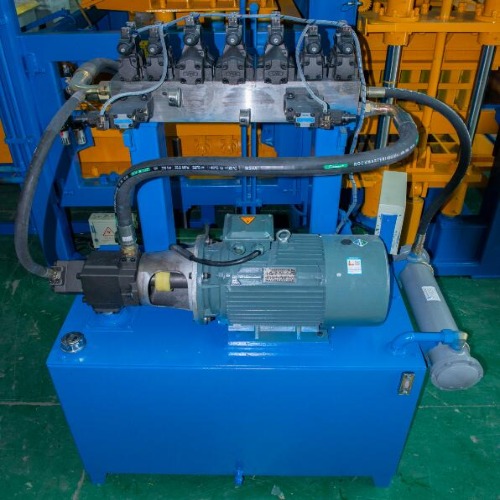

This hydraulic unit is specifically designed to supply consistent and reliable hydraulic power to the QT6-15 automatic block making machine. It enables precise control of all critical actions, including material feeding, pressing, ejection, and mold vibration. Built with high-efficiency components, the unit ensures smooth operation, reduced cycle times, and improved block density. Its robust construction minimizes maintenance needs while maximizing output.
The raw material hopper of the QT6-15 automatic solid block making machine ensures efficient, continuous feeding with a large capacity design to reduce refill cycles. It features a sturdy structure for even material flow, preventing blockages. The hopper integrates with the automatic batching system for precise material measurement, improving product consistency. Easy to clean and maintain, it supports various raw materials like crushed stone, sand, and industrial waste.
The automatic pallet provider for the QT6-15 solid block making machine ensures continuous, hands-off pallet feeding to boost productivity. It synchronizes precisely with the production cycle, automatically delivering wooden or steel pallets to the molding station without manual intervention. This reduces labor costs, prevents production delays, and improves operational safety. The system features durable construction for long service life, adjustable settings to match different pallet thicknesses, and low maintenance requirements.

Block Type

The arch breaking type rapid feeding device ensures superior material flow for the QT6-15 block making machine. It effectively prevents raw material bridging and clogging, enabling faster, more uniform filling of complex molds. This design is especially beneficial for multi-hole bricks, delivering consistent density and structural integrity across each block. By improving feeding uniformity and speed, it reduces waste and enhances overall production efficiency.

Exhibition Experience

The QT6-15 extend type high efficient vibrotechnique delivers superior block forming with advanced vibration technology for increased compaction and product density. Its automatic operation ensures consistent quality output of solid blocks. The extended design allows for longer mold stroke, enabling production of various block sizes. High-frequency vibration reduces curing time while enhancing strength. Low energy consumption and durable hydraulic components lower maintenance costs.

FAQ

1.How long does the product production cycle typically take?

Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15?

The raw materials utilized in the production process of Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15 after mold confirmation?

The estimated date of shipment for the Wholesale of Quality Products Automatic Solid Block Making Machine QT6-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5.Can this machine make my bricks or bricks of other sizes?

We will design and make mold according to customer's drawing.
